【 特徴 】
- ドライブレコーダー機能
走行中の周辺状況を動画形式で記録することで運転者は安全運転を心掛け、万が一事故が発生した場合、事故責任を明らかにしたりすることができる。
- 走行車線逸脱警告システム機能
前方の走行車線を検知し、運転者は走行車線を変更するような動作（ウインカーを作動させるなど）がないまま、車が走行車線から逸脱したりした場合、音声やライトで運転者に警告を出し、危険状況を知らせることができる。

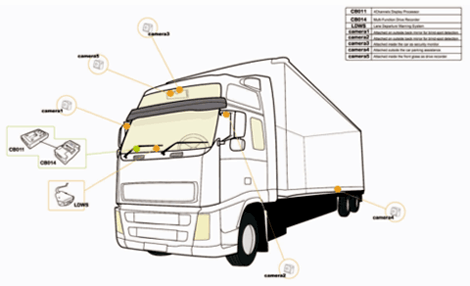

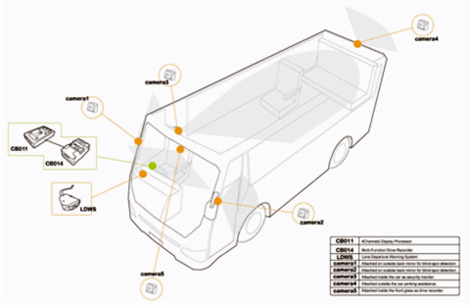

- 周辺映像監視装置機能
車の周辺状況（大型車の周辺死角）をリアルタイムに監視し、運転者が走行中の周辺状況を把握できるように補助することができる。
|

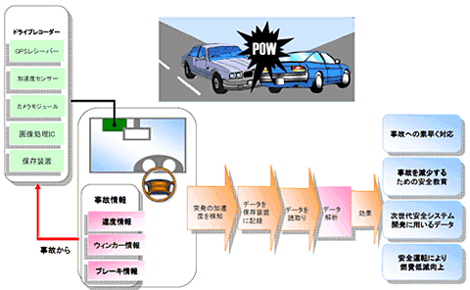

ドライブレコーダー
 |

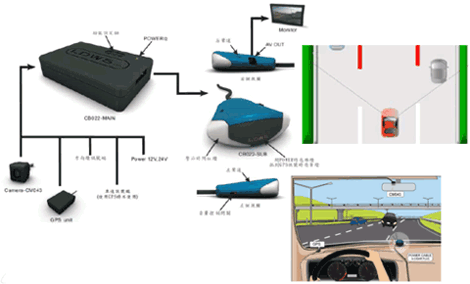

走行車線逸脱警告システム（CB022）
 |
【 Specification 】
ドライブレコーダー
| CB014A Drive Recorder |
| Channels |
2 channels |
| EFL |
2.28mm |
| F NO. |
F 2.0 |
| Field of View 1 |
140°(D), 101°(H), 72°(V) |
| Field of View 2 |
160°(D), 117°(H), 84°(V) |
| Input Voltage |
12V~36V |
| Recorder Format |
MPEG4 |
| Recorder Format Rate |
More than 20fps |
| Storage Media |
CF Card 32G |
| Sensor Spec |
1/4” CMOS sensor |
| Dynamic Range |
60dB |
| Power Consumption |
600mA @ 12V |
| Active Pixel |
720H*480V |
| Dimension |
120mm*85mm*26mm |
| Weight |
210g |
| Power Disconnection Backup |
1 minute |
| Real Time Clock |
Yes |
| Audio Recording |
Yes |
| Storage Format |
No |
| Operation Temperature |
-10°C~70°C |
| Storage Temperature |
-35°C~85°C |
| Power Cable Length |
5m |
|
走行車線逸脱警告システム
| CB022 LDWS |
| Field of View |
140°(D), 101°(H), 71°(V) |
| EFL |
2.28mm, infinity condition |
| TV-Distortion |
-23%(H=2.24) |
| Input Voltage |
6V~36V |
| Sensor Spec |
1/4” CMOS sensor |
| Dynamic Range |
60dB |
| Active Pixel |
640H*480V (VGA) |
| F NO. |
F 2.0 |
| Power Consumption |
420mA @ 12V |
| Operation Temperature |
-10°C~70°C |
| Storage Temperature |
-40°C~85°C |
| Dimension |
90mm*60mm*22.8mm |
| Weight |
76.5g |
| Power Cable Length |
3.9m |
|
Camera Module Specification
| CM041 Specifications |
| Input Voltage |
6V |
| Output Signal |
NTSC / PAL |
| Sensor Specification |
VGA CMOS |
| Power Consumption |
200mA @ 6V (IR LED ON) |
| Operation Temperature |
-20°C~70°C |
| Storage Temperature |
-30°C~85°C |
| Frame Rate |
30fps in NTSC / 25fps in PAL |
| IR LED |
Yes |
| LENS structure |
5 elements (2mg3G) |
| Field of view |
160°(D), 117°(H), 84°(V) |
| BFL |
2.0mm |
| F No. |
F2.0 |
| Water proof & Dust proof |
Not applied |
| Operation Humidity |
10%RH~85%RH |
| Storage Humidity |
10%RH~95%RH |
| TV-Distortion |
-28.80% |
|
| CM042 Specifications |
| Input Voltage |
6V |
| Output Signal |
NTSC / PAL |
| Sensor Specification |
VGA CMOS |
| Power Consumption |
200mA @ 6V (IR LED ON) |
| Operation Temperature |
-20°C~70°C |
| Storage Temperature |
-30°C~85°C |
| Frame Rate |
30fps in NTSC / 25fps in PAL |
| IR LED |
Yes |
| LENS structure |
5 elements (2mg3G) |
| Field of view |
140°(D), 101°(H), 72°(V) |
| BFL |
2.14mm |
| F No. |
F2.0 |
| Water proof & Dust proof |
Not applied |
| Operation Humidity |
10%RH~85%RH |
| Storage Humidity |
10%RH~95%RH |
| TV-Distortion |
-23% |
|
| CM043 Specifications |
| Input Voltage |
6V |
| Output Signal |
NTSC / PAL |
| Sensor Specification |
VGA CMOS |
| Power Consumption |
120mA @ 6V |
| Operation Temperature |
-20°C~70°C |
| Storage Temperature |
-30°C~85°C |
| Frame Rate |
30fps in NTSC / 25fps in PAL |
| IR LED |
Not applied |
| LENS structure |
5 elements (2P3G) |
| Field of view |
140°(D), 101°(H), 72°(V) |
| BFL |
2.14mm |
| F No. |
F2.0 |
| Water proof & Dust proof |
Not applied |
| Operation Humidity |
10%RH~85%RH |
| Storage Humidity |
10%RH~95%RH |
| TV-Distortion |
-23% |
|
| CM044 Specifications |
| Input Voltage |
6V |
| Output Signal |
NTSC / PAL |
| Sensor Specification |
VGA CMOS |
| Power Consumption |
120mA @ 6V |
| Operation Temperature |
-20°C~70°C |
| Storage Temperature |
-30°C~85°C |
| Frame Rate |
30fps in NTSC / 25fps in PAL |
| IR LED |
Not applied |
| LENS structure |
5 elements (2mg3G) |
| Field of view |
160°(D), 117°(H), 84°(V) |
| BFL |
2.0mm |
| F No. |
F2.0 |
| Water proof & Dust proof |
Not applied |
| Operation Humidity |
10%RH~85%RH |
| Storage Humidity |
10%RH~95%RH |
| TV-Distortion |
-28.80% |
|
| CM045 Specifications |
| Input Voltage |
6V |
| Output Signal |
NTSC / PAL |
| Sensor Specification |
VGA CMOS |
| Power Consumption |
120mA @ 6V |
| Operation Temperature |
-20°C~70°C |
| Storage Temperature |
-30°C~85°C |
| Frame Rate |
30fps in NTSC / 25fps in PAL |
| IR LED |
Not applied |
| LENS structure |
5 elements (2mg3G) |
| Field of view |
160°(D), 117°(H), 84°(V) |
| BFL |
2.0mm |
| F No. |
F2.0 |
| Water proof & Dust proof |
Yes ( IP68 ) |
| Operation Humidity |
10%RH~85%RH |
| Storage Humidity |
10%RH~95%RH |
| TV-Distortion |
-28.80% |
|
| CM051 Specifications |
| Input Voltage |
6V-15V |
| Output Signal |
NTSC / PAL |
| Sensor Specification |
VGA CMOS |
| Power Consumption |
120mA @ 6V |
| Operation Temperature |
-40°C~85°C |
| Storage Temperature |
-40°C~85°C |
| Frame Rate |
30fps in NTSC / 25fps in PAL |
| IR LED |
Not applied |
| LENS structure |
5 elements (2mg3G) |
| Field of view |
160°(D), 117°(H), 84°(V) |
| BFL |
2.0mm |
| F No. |
F2.0 |
| Water proof & Dust proof |
Yes ( IP68 ) |
| Operation Humidity |
10%RH~85%RH |
| Storage Humidity |
10%RH~95%RH |
| TV-Distortion |
-28.80% |
|
|
|
 |
|
|
